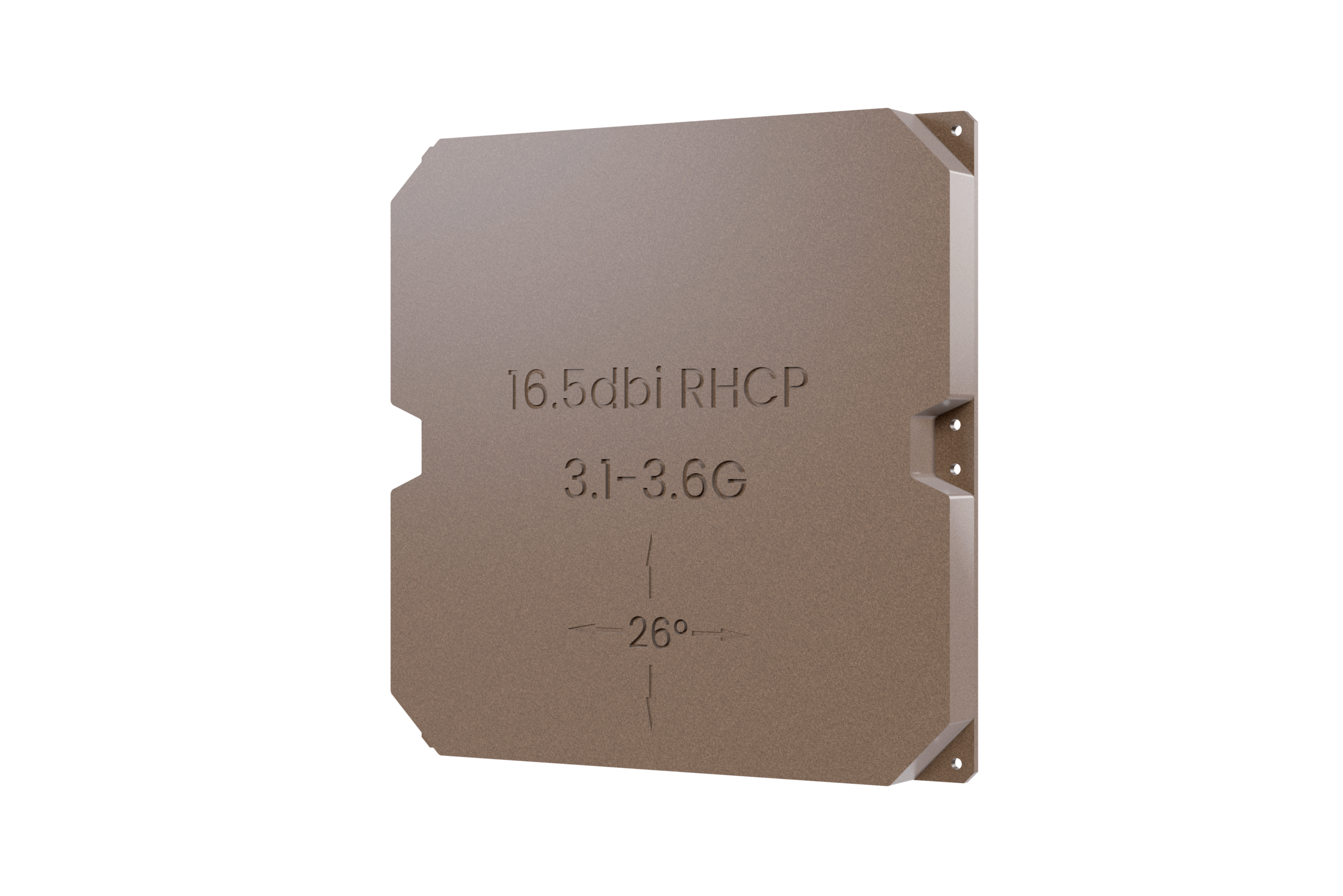

Video Patch Antenna FT 3.1–3.6GHz 16.5dBi RHCP

Patch antenna FT 3.1–3.6GHz 16.5 dBi RHCP is a directional high-gain antenna designed for transmitting and receiving video signals in the 3100–3600 MHz frequency range.

Thanks to its 16.5 dBi gain and narrow beam, the antenna concentrates the signal in a defined direction, which helps increase link range and reduce the impact of signals from other directions compared to omnidirectional antennas.

Circular polarization provides more stable reception in the presence of reflections and changes in drone orientation during flight. The base version uses right-hand circular polarization RHCP, commonly used in FPV systems.

The antenna has a flat patch form factor and is intended for mounting on a tripod or ground-station elements. The standard SMA Female connector ensures compatibility with most video receivers with a characteristic impedance of 50 Ω.
