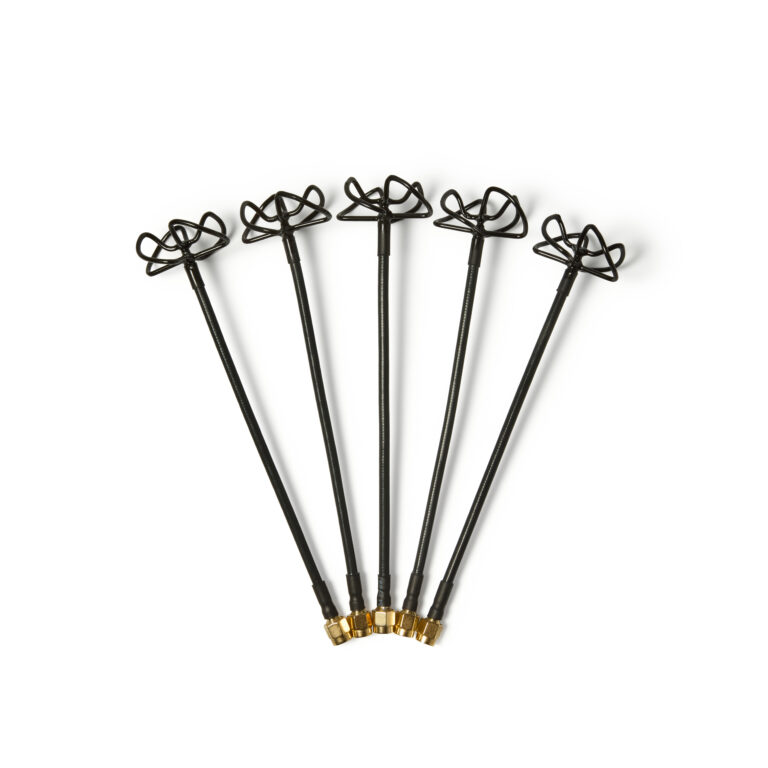

Video communication antenna FT V5 4.9–6.2GHz
Antenna FT V5 for 4900–6200 MHz designed for stable FPV digital video transmission and HD streaming.
The V5 antenna is designed for stable video transmission in the high frequency band of 4900-6200 MHz, where maximum bandwidth and high noise immunity are particularly important.
With a standing wave ratio of 1.2, it demonstrates excellent matching performance, which ensures minimal losses and high efficiency when working with digital video streams.
Application features:
- Ideal for real-time digital systems including HD streaming, FPV video and relay
- Recommended for use with long-range drones, ground stations and video relay systems
- Compatible with modern digital video transmission protocols including FT Systems ecosystems
- Optimized for high-frequency video transmission
- High stability in challenging RF environments
- Minimal losses and reliable HD/FPV video delivery
- Designed and tested in Ukraine
Technical characteristics
- Operating range: 4900–6200 MHz
- VSWR (Voltage Standing Wave Ratio): 1.2
- Polarization: circular RHCP
- Dimensions: 195 mm х 40 mm х 42 mm
- Weight: 15 g
- Connector: SMA male
